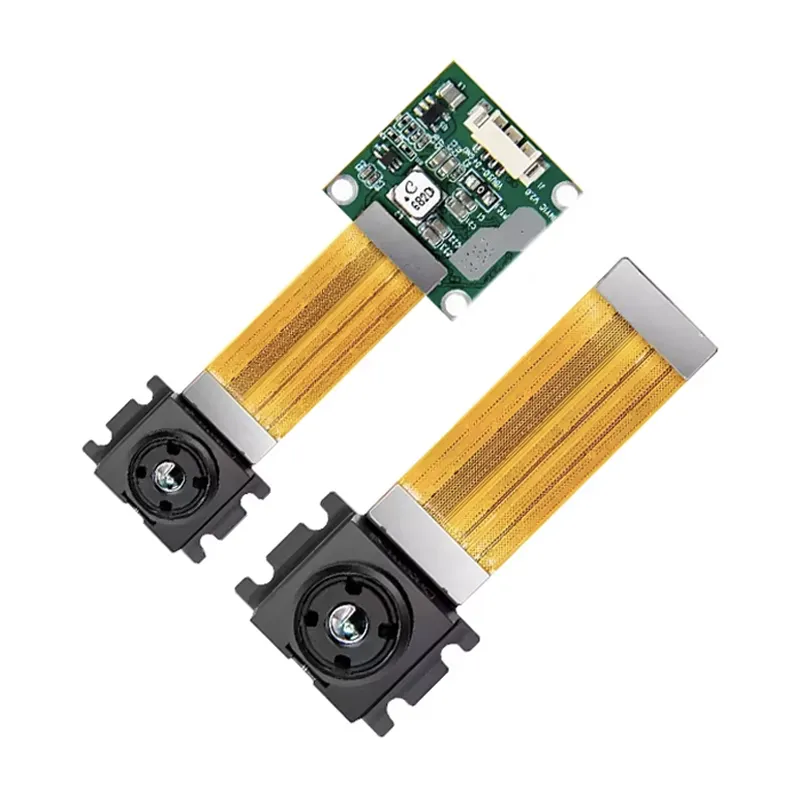

Key Features of Thermal Imaging Camera Modules

Thermal imaging technology has revolutionized how we perceive and interact with the world. By capturing heat signatures, these camera modules provide indispensable insights across various industries, from industrial monitoring to security and medical diagnostics. Imagine a scenario where a thermal imaging camera quickly identifies a hot spot in a factory's machinery before it causes a catastrophic failure, saving both time and money. This technology isn't just a toolit's a game-changer that offers unparalleled visibility into the invisible.

Essential Components of Thermal Imaging Camera Modules

Understanding the core components of thermal imaging camera modules is essential for appreciating their overall functionality and performance.
Sensor Technology
Thermal imaging cameras rely on infrared detectors to capture heat signatures. The most common types of detectors include:
- Focal Plane Arrays (FPAs): These arrays convert infrared radiation into electrical signals. FPAs come in various formats, such as Quantum Well Infrared Photodetectors (QWIPs), Mercury Cadmium Telluride (HgCdTe), and Indium Antimonide (InSb). These materials offer different levels of sensitivity and dynamic range.
- Microbolometers: These simpler detectors measure temperature changes based on resistance changes in a thin film. They are cost-effective and widely used in lower-end thermal imaging devices.
Optics
The lens system plays a critical role in collecting and focusing infrared radiation onto the sensor. High-quality lenses ensure that thermal images are clear and accurate. Advanced optics can significantly enhance the overall performance of the camera, making it capable of capturing detailed thermal data.
Electronic Circuitry
Advanced electronic circuitry processes the raw data from the sensor, contributing to making the camera module more compact and energy-efficient. Signal processing algorithms refine the thermal images, enhancing their clarity and detail.

Image Resolution and Pixel Density

Image resolution and pixel density are crucial factors that impact the clarity and detail of thermal images.
- Resolution:
- The number of pixels per square inch (PPI) or the total number of pixels in the image.
- Higher resolution allows for more detailed images, making it easier to identify small temperature variations. For example, in industrial inspections, higher resolution can help pinpoint hot spots in machinery that might otherwise go unnoticed.
- Pixel Density:
- The number of pixels per square millimeter.
- Different pixel densities are suitable for various applications. Low pixel density (e.g., 160x120) is suitable for basic applications, while medium pixel density (e.g., 320x240) offers a good balance between resolution and thermal sensitivity. High pixel density (e.g., 640x480 and above) is ideal for detailed thermal imaging and precision applications.

Sensitivity and Dynamic Range

Thermal Sensitivity:
This refers to the smallest temperature difference that a camera can detect. Higher sensitivity is essential for identifying minute temperature changes, which is crucial in security and medical diagnostics.
Dynamic Range:
The ratio of the highest to the lowest detectable temperature. A wide dynamic range allows the camera to capture both very hot and very cold objects accurately. For instance, in security applications, a camera with a wide dynamic range can distinguish between the temperature of a person and the background environment more effectively.
Factors Affecting Sensitivity and Dynamic Range:
- Detector Material: Different materials have varying sensitivities and dynamic ranges. For example, HgCdTe detectors typically offer higher sensitivity compared to InSb detectors.
- Cooling Systems: Cooling the detector can reduce noise and increase sensitivity. Advanced cooling systems are essential for maintaining high performance in critical applications.
- Signal Processing: Advanced algorithms can enhance the sensitivity and dynamic range, ensuring that the thermal images are as clear and detailed as possible.

Field of View and Illumination Requirements

Field of View (FOV):
The FOV determines the area that the camera can capture in a single image. A wide FOV can cover larger areas, but it may reduce the resolution of the image. Conversely, a narrow FOV provides more detailed images but covers a smaller area. For instance, in industrial monitoring, a wide FOV can monitor the entire factory floor, while a narrow FOV can focus on specific machinery.
Role of Ambient Light:
In thermal imaging, ambient light can interfere with the detection of infrared radiation. Therefore, it is essential to minimize ambient light or use additional illumination techniques to improve image clarity.
Tips for Optimizing Illumination:
- Infrared LEDs: Using infrared LEDs can provide supplementary lighting in low-light conditions.
- Optimal Distance: Optimizing the distance between the camera and the object balances resolution and illumination. For example, in security applications, adjusting the distance can help capture clearer images of intruders.

Thermal Imaging Applications

Thermal imaging camera modules are versatile tools with numerous applications across various industries.
- Industrial Monitoring:
- Early detection of overheating components in machinery: For example, thermal imaging can detect hotspots in electrical equipment before they cause a failure, preventing expensive downtime.
- Maintenance and troubleshooting of industrial processes: Thermal imaging can help identify issues in the production line, ensuring that processes run smoothly.
- Security:
- Night vision capabilities for surveillance and access control: Thermal imaging cameras can operate effectively in complete darkness, providing clear images of intruders.
- Identification of intruders in low-light conditions: By converting heat signatures into visible images, thermal imaging can detect humans and animals, enhancing security measures.
- Medical Diagnostics:
- Monitoring temperature changes in medical equipment and processes: Thermal imaging can help detect hotspots in medical devices, ensuring they operate within safe temperature ranges.
- Early detection of hotspots in tissues: Thermal imaging is used in medical devices to detect hotspots that could indicate health issues, such as infections or tumors.

Future Trends and Innovations

As technology continues to advance, thermal imaging camera modules are expected to improve in several ways.
- Emerging Technologies:
- Quantum dots for enhanced sensitivity: Quantum dots can improve the performance of thermal detectors, making them more sensitive to heat signatures.
- Nanostructured materials for improved thermal response: These materials can enhance the detection of small temperature changes.
- Potential Advancements:
- Miniaturization for portable and wearable thermal imaging devices: This advancement will make thermal imaging more accessible for everyday use.
- Integration with artificial intelligence for real-time analysis and decision-making: AI can help process thermal data in real-time, providing immediate insights and actionable recommendations.
- Market Trends and Predictions:
- Increased adoption in smart cities and smart homes: Thermal imaging is becoming more common in urban settings for security and energy management.
- Growing demand from industries such as aerospace and automotive: These industries are adopting thermal imaging to enhance safety and efficiency.

Conclusion

Thermal imaging camera modules are powerful tools that offer high-resolution images, enhanced sensitivity, and dynamic range, making them indispensable in various applications. By understanding the key features and their importance, businesses and professionals can leverage thermal imaging technology to gain a competitive edge. As the technology continues to evolve, new innovations are set to revolutionize the field, making thermal imaging even more versatile and effective.
Thermal imaging camera modules are more than just sophisticated tools; they are essential components in modern technology that enable us to see the invisible and make informed decisions.
