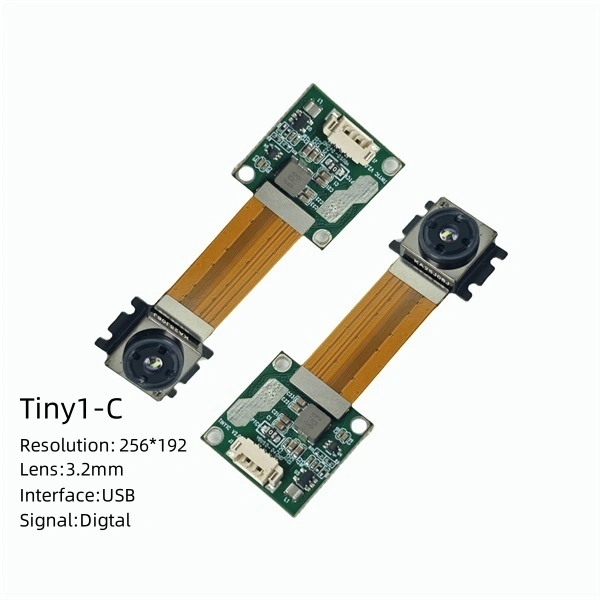

Tiny1-C: Focal Length 3.2mm High resolution 256*192 Infrared Camera Module Thermal Imaging Camera Module with USB

Item Description:

• Number: Tiny1-C
• Resolution:256*192
• Lens:3.2mm
• Interface:USB
• Putout: Digital signal

Usage scenarios

• Temperature detection, can be used for industrial temperature measurement, to prevent fires, and to promptly remind of existing safety hazards.
• Surveillance cameras allow for clear observation of nearby organisms with heat sources at night.
• Specific applications: Single person handheld thermal imager, Handheld thermometer, Automotive external thermal imaging,Infrared helmet, UAV,etc.

Features of Mini Thermal Camera Module

• Autonomous core, cost-effective: The self-developed 12μm infrared detectors in the Tiny1-C series offer excellent value for cost and are the optimal choice for the same resolution.
• Outstanding performance, lightweight and convenient: Provide smooth and high-definition images, supporting up to 50Hz lossless image quality. Two precise temperature measurement modes cover a wide temperature range and ensure temperature stability in different ambient temperatures. The entire series has ultra-compact size of 19mm×17.6mmX8.3mm, with a module body weighing less than 8g, making integration easy.
• Rich functions, multiple options: Lensless solutions, manual/auto-focus non-thermalized lenses cover various scenarios.
