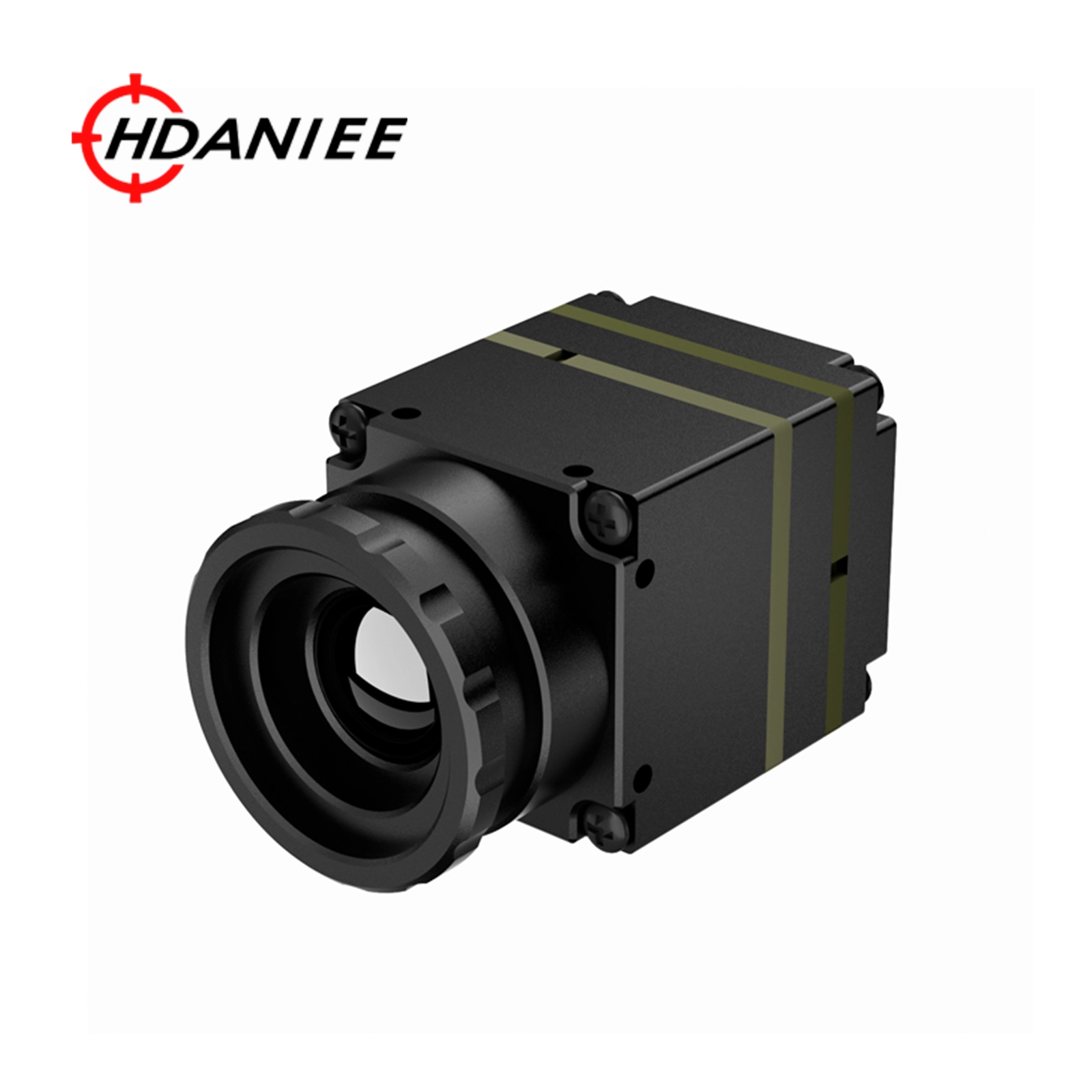

N6-CY Series

Technical Excellence:

1. Precision HD Imaging and High Frame Rate Equipped with a 12um pixel pitch sensor, it delivers sharp 640x512 HD infrared imagery. The 50Hz frame rate ensures fluid real-time video output without lag, making it ideal for professional monitoring and high-speed tracking.

2. Exceptional Power Efficiency and Wide Voltage Support With a typical power consumption of only 0.6W, the N6-CY-9 significantly extends the battery life of portable and airborne platforms. The broad 4.5V-27V input range simplifies circuit design and enhances overall system reliability.

3. Industrial-Grade Environmental Reliability Tested to withstand 80g shocks (@4ms) and operational in temperatures from -20C to +60C. Integrated Non-Uniformity Correction (NUC) and advanced hardware calibration ensure consistent visual data even in extreme field conditions.

4. Optimized Long-Range Detection The integrated 9mm professional optical system provides a wide 46.2-degree by 37.7-degree field of view. It is capable of detecting human-sized targets at distances up to 900 meters and recognizing them at 225 meters.

5. Flexible Communication and Development Features a standard UART control interface (115200 baud rate) for full parameter access. Developers can easily implement features such as 1x to 8x digital zoom, pseudo-color switching (White Hot, Black Hot, etc.), and advanced image enhancement algorithms.

Applications:

• Professional UAV Payloads: Lightweight and low-power design for long-endurance inspection missions.

• Power and Industrial Inspection: High sensitivity to capture minute temperature anomalies in critical infrastructure.

• Security and Surveillance Integration: Long-range detection and wide voltage support for simplified installation.

• Handheld Thermal Devices: Compact 21x21mm footprint ideal for portable equipment development.
