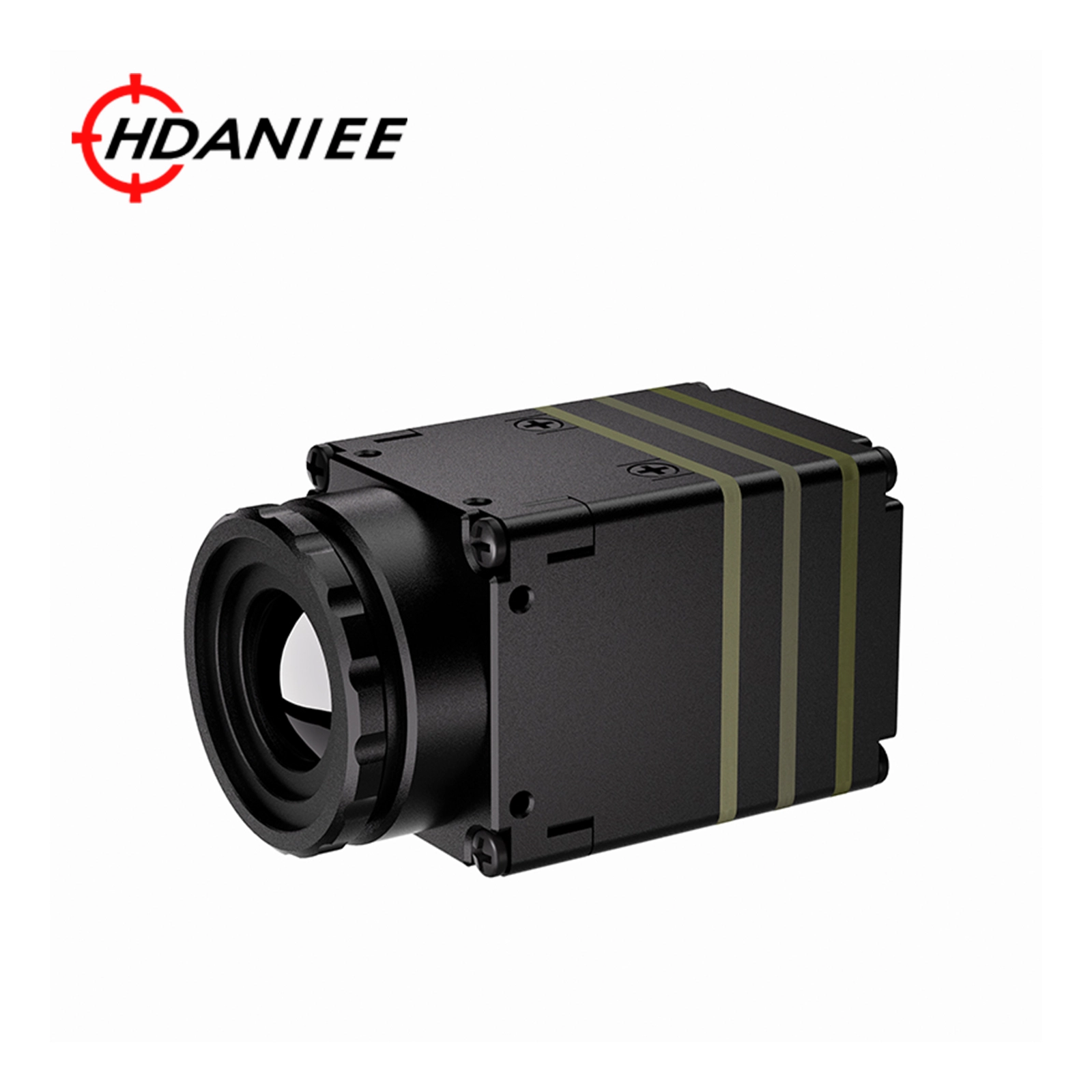

P6-UC Series

1.  Technical Advantages

• Dual-Interface Versatility: Unique support for both USB (UVC) and CVBS (PAL) video outputs, providing both digital and analog solutions for diverse hardware architectures.

• Advanced 12μm VOx Technology: Utilizes cutting-edge vanadium oxide technology with a 12μm pixel pitch to maximize spatial resolution in a compact form factor.

• Rich Image Customization: Supports multiple pseudo-color modes (White Hot, Black Hot, Red Hot, Iron Red) and adjustable image enhancement, brightness, and contrast via UART.

• Rugged Reliability: Engineered for durability with a shock resistance of 80g (@ 4ms) and an operating temperature range of -20°C to +60°C.

2.  Interfaces & Integration

• Digital Output: USB (UVC) for standard video streaming to various operating systems.

• Analog Output: CVBS (PAL) via a 5-pin 1.25mm terminal.

• Command Control: UART interface (115200 baud rate) for full parameter adjustment and module control.

• Flexible Power: Supports a wide input range of 4.5V to 27V, ensuring compatibility with most battery systems.

3.  Detailed Specifications
