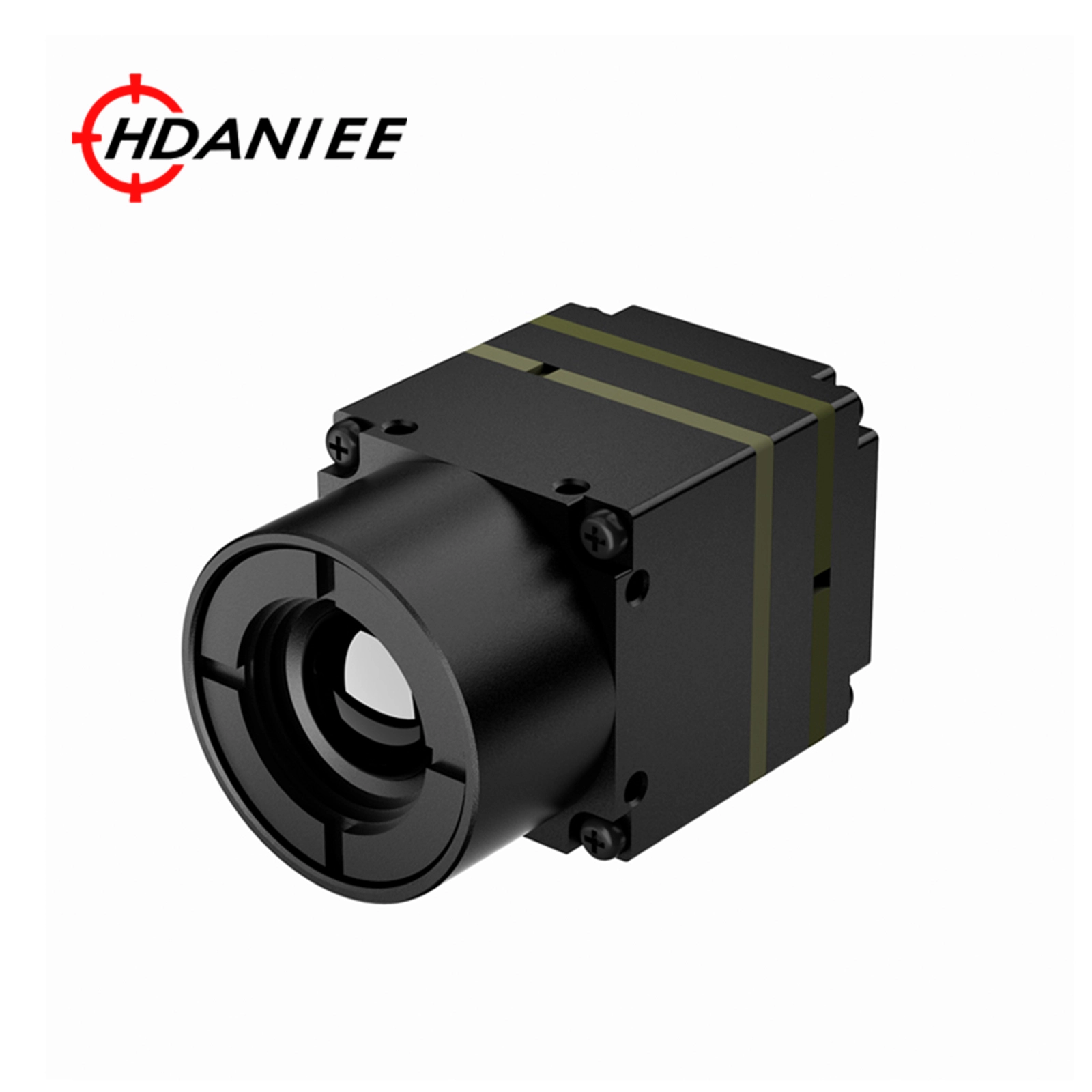

S6-K1 Series
Professional Multifunctional Thermal Imaging Core (640×512 High-Speed Edition)
The S6-K1 series represents the pinnacle of compact infrared technology. Specifically engineered for professional integrators, the S6-K1-9 combines a high-density 640x512 VOx sensor with an exceptional 60Hz frame rate. This module is optimized for applications requiring both high spatial resolution and high temporal resolution, such as fast-moving UAV surveillance and precision industrial inspection.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
1. Technical Excellence
- High-Speed Sensor Technology: Unlike standard 25Hz/30Hz modules, the S6-K1 operates at 60Hz, ensuring zero-latency observation and superior tracking of dynamic targets.
- Precision Optics & Long-Range Performance: The integrated 9mm lens system offers a wide 46.2° × 37.7° FOV, capable of identifying human-sized targets at over 200 meters.
- Advanced Calibration & NUC: Supports sophisticated non-uniformity correction (NUC) and lid calibration via UART protocol, ensuring image consistency across varying temperatures.
- Industrial-Grade Reliability: Tested to withstand 80g shocks (@ 4ms) and operational in temperatures from −20°C to +60°C.
2. Integration & Development
-
- Compact Form Factor: The 21 × 21 × 34.48mm footprint allows for integration into even the most space-constrained housings.
- Universal Interface: Features a 5-pin 1.25mm terminal providing CVBS (PAL) video output and UART (RX/TX) for full command and control.
- Flexible Power Management: A broad 4.5V ~ 27V input range simplifies power system design for various platform voltages.
