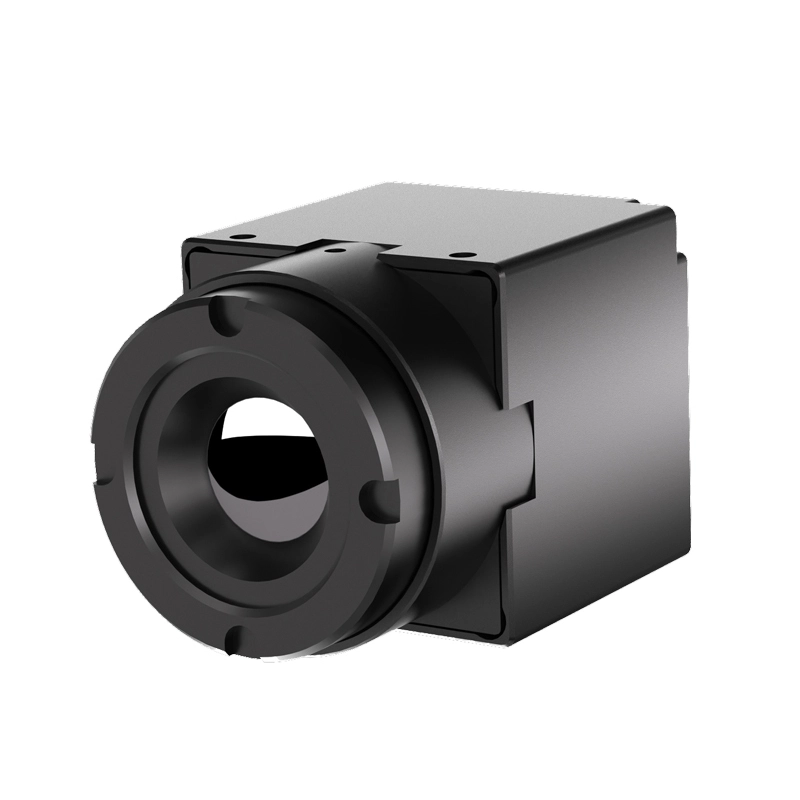

AC Series 640×512 VOx Uncooled Thermal Module for Drones-1750328619067807
Key Feature
Description
AC series is an uncooled infrared module with optional resolutions of 640×512, 384×288. It features with a compact size, lightweight, low power consumption and a self-developed infrared ISP chip for clear and smooth images. AC640 also offers multiple image modes, allowing users to choose the best one for different industry applications and it provides various lens options and supports customer-developed lenses. AC640 applies to multiple scenarios, e.g. vehicle mounted thermal camera, security, night vision, etc.
5.0
Output type:
CVBS
Pseudo color mode:
White heat,Red heat,Black heat,Iron red,Bird watching,Sky
Focusing:
Fixed focus
Language:
English
Resolution:
640*512
Lens:
9MM
Size:
28*28*41.5MM
Weight:
55.2g
Output Signal:
Analog
Color:
Black
Lens can be choose:
9.1mm 25mm
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Related Parameters
|
Technical specifications |
AC 384 |
|
AC 640 |
|
|
|||
|
Detector Type |
Vanadium Oxide Uncooled Focal Plane Arrays |
||
|
Pixel Interval |
12um |
||
|
Response band |
8-14μm |
||
|
NETD |
≤40mK |
||
|
Refresh Rate |
25Hz |
||
|
Shutter |
Automatic shutter correction |
||
|
Focusing |
Support |
||
|
Aperture |
1.0 | ||
|
Lens millimeters |
9mm | ||
|
FOV(H*V) |
29.3°×22° | 48.9°×39.1° | |
|
Palettes |
White heat / Black heat / Iron red / Anti-iron red / Red heat / Anti-red heat / Greyish yellow / Anti-greyish yellow / Blueish red / Anti-blueish red / Greyish red / Anti-greyish red | ||
|
System |
PAL |
||
|
Output type |
CVBS |
||
|
Supply voltage |
4.5-18V | ||
|
Power dissipation |
1000mw |
||
|
Operating temperature |
-40℃～+80℃ |
||
|
Storage temperature |
-45℃～+85℃ |
||
|
size |
28*28*41.5MM |
||
|
Weight |
55.2g |
||
|
AC 640×512 9mm structure diagram |
|||
Application Scenarios
UAV payloads
Outdoors
UAV Payloads
