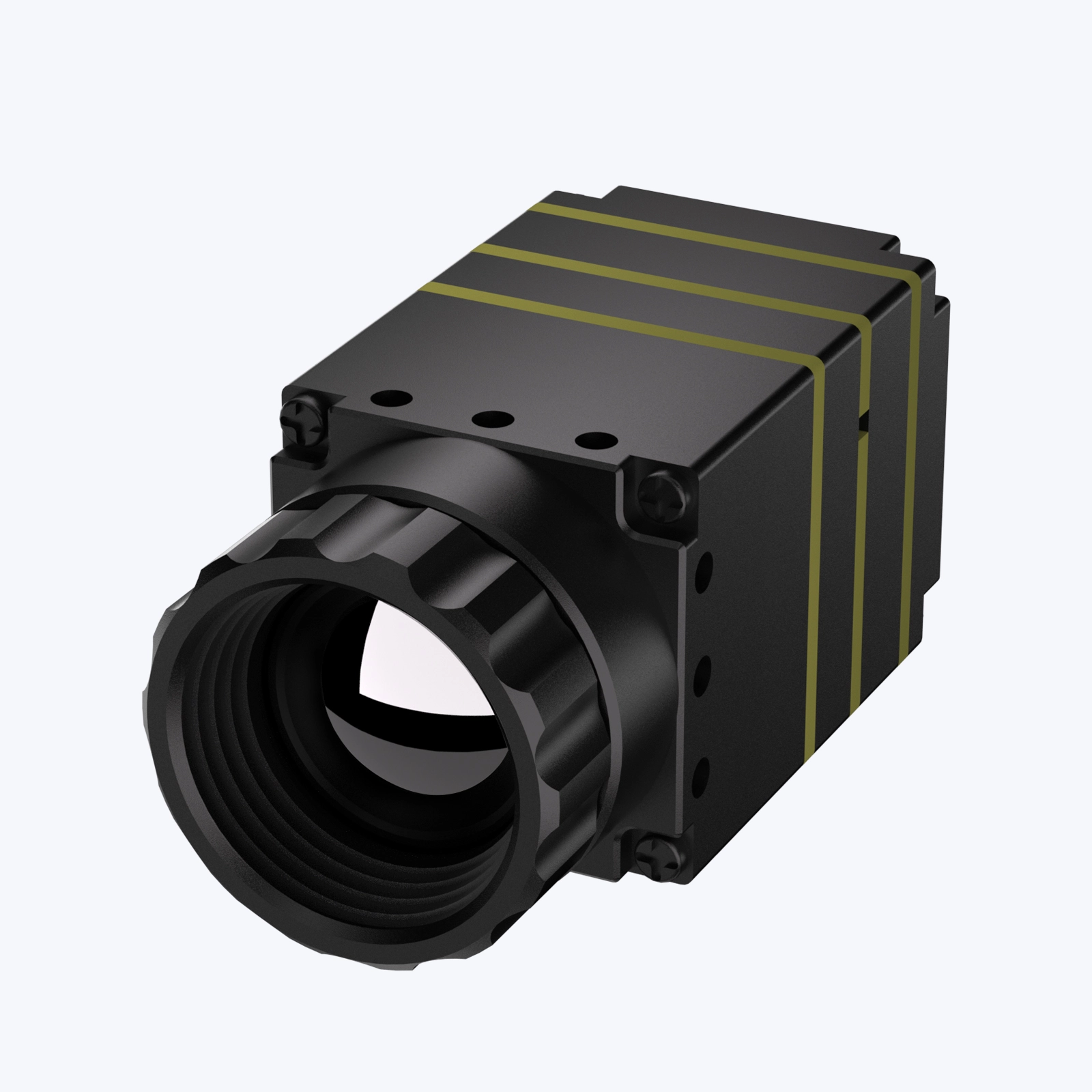

M3 Micro Thermal Imager Camera Module
Thermal Camera Fpv 384x288 4MM/9MM Lens with CVBS Interface for FPV Drones Model
M3 Thermal imager Camera Module Thermal Camera
Interface: CVBS
Resolution: 384x288
Spectral response: 8~14um
Lens: 4mm/9mm
Frame rate: 50Hz
Working temperature: -30 ° C+60 ° C
Power consumption: ≤ 0.8
Size: 17.3mm * 17.3mm * 35.7mm
Weight: 16g
Power output: 4.6v-18v
Block mode: automatic shifting with gear
NETD：35mK(f/1.0300K)
Pseudo color mode: self heating/black heating/red heating/iron red/fusion
Interface: CVBS
Resolution: 384x288
Spectral response: 8~14um
Lens: 4mm/9mm
Frame rate: 50Hz
Working temperature: -30 ° C+60 ° C
Power consumption: ≤ 0.8
Size: 17.3mm * 17.3mm * 35.7mm
Weight: 16g
Power output: 4.6v-18v
Block mode: automatic shifting with gear
NETD：35mK(f/1.0300K)
Pseudo color mode: self heating/black heating/red heating/iron red/fusion
