TM33 Digital Movement384*288 Resolution 19mm Focal length Thermal Camera Module For Drone Thermal Imaging Camera
|
Overview |
|
|
Model |
TM33-LG/D-19MM |
|
Parameter |
Thermal Camera Module |
|
Detector |
|
|
Image Sensor |
Vanadium Oxide Uncooled Focal Plane Arrays |
|
Response Waveband |
8 to 14 μm |
|
NETD |
< 35 mk (@ 25°C, F# = 1.0) |
|
Resolution |
384 × 288 |
|
Frame |
50 fps |
|
Pixel Interval |
12 μm |
|
Image Param |
|
|
Image Correction |
Auto Correction (Timing Correction, Temperature Correction), Manual Correction, Background Correction |
|
Nonuniformity |
Shutter Correction |
|
Correction |
|
|
Brightness |
Support |
|
Contrast |
Support |
|
DDE |
Support |
|
AGC Mode |
Auto |
|
DNR |
Support |
|
Zoom |
×1，×2，×4，×8 |
|
Palette |
Black Hot, White Hot, Red Hot, Fusion |
|
DPC |
Support |
|
Mirror |
None, Up/Down, Left/Right, Center |
|
Image Output |
8 digit BT.656 (720 × 576) |
|
Frame |
25 fps (BT.656), 50 fps (YUV + RAW) |
|
First Image |
6 s |
|
Param. Saving |
Support |
|
Reticle |
Support |
|
Menu |
Support |
|
Performance and Interface |
|
|
Impact Strength |
750 g/1 ms |
|
Video Interface |
Support BT.656 and YUV + RAW |
|
Communication Interface |
UART |
|
Lens Mount |
M25 × 0.5 mm |
|
System Param |
|
|
Power Supply |
2.5 to 5 VDC |
|
Power Consumption |
0.75 W |
|
Working Temperature and Humidity |
-40℃ to 70℃ <90%RP |
|
Storage Temperature and Humidity |
-45℃ to 85℃ <90%RP |
|
Dimension (mm) |
See Chapter 2. Appearance and Interface |
|
Weight |
< 22 g (without lens and lens base) |

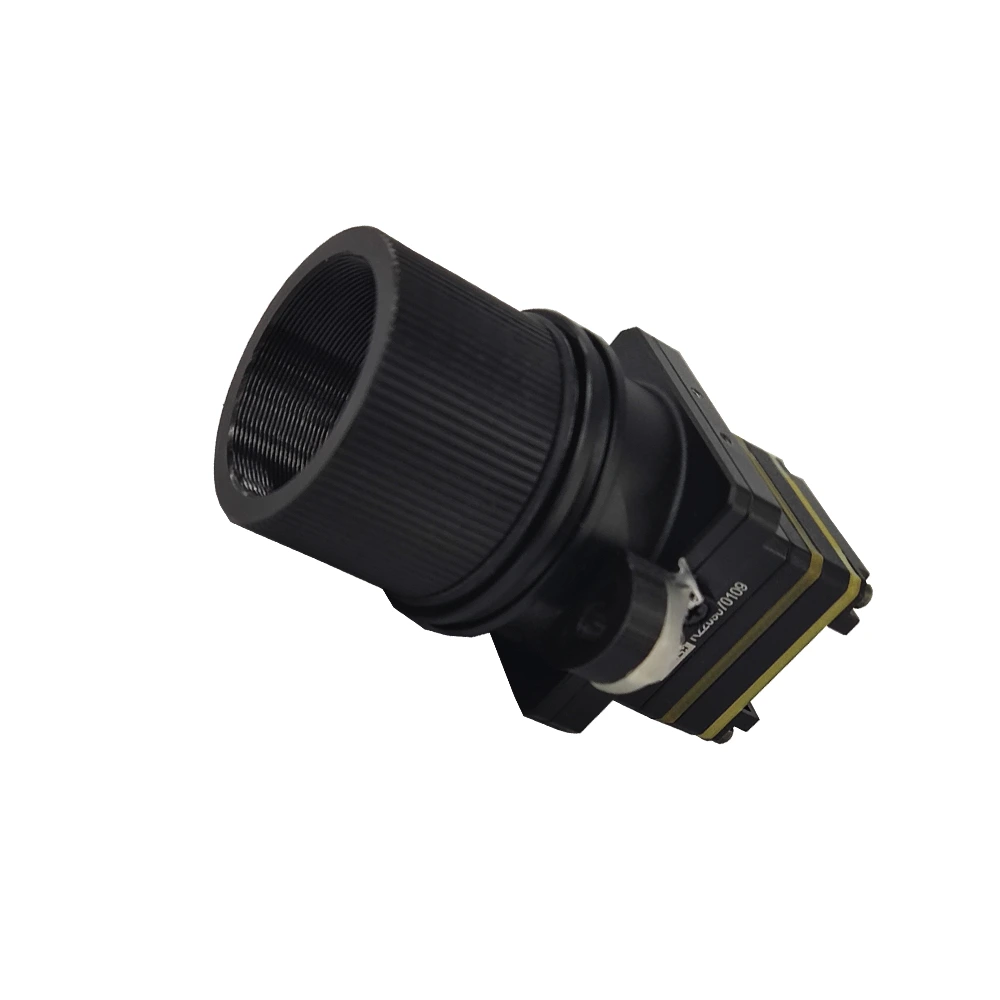

Product display
