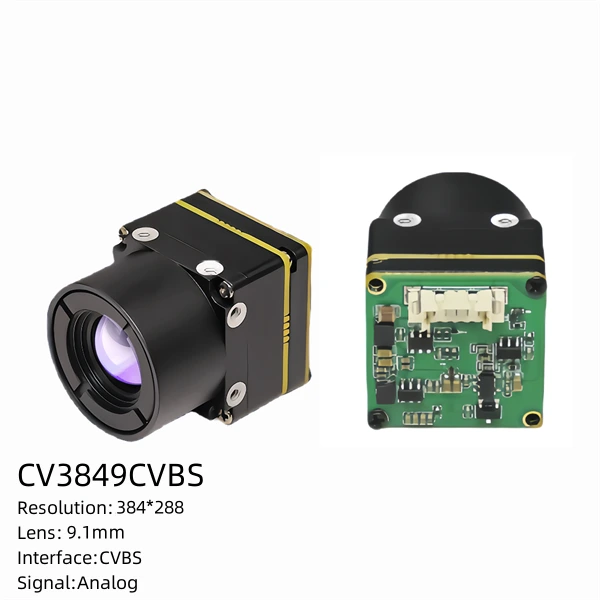

CV384: 9.1mm Focal length with different interface Resolution 384*288 Camera Module thermal imagers
Item Description:
- Number: CV384
- Resolution:384*288
- Lens:9.1mm
- Interface:Different
- Putout: Analog signal
Usage scenarios
- Temperature detection, can be used for industrial temperature measurement, to prevent fires, and to promptly remind of existing safety hazards.
- Surveillance cameras allow for clear observation of nearby organisms with heat sources at night.
- Specific applications: Single person handheld thermal imager, Handheld thermometer, Automotive external thermal imaging,Infrared helmet, UAV,etc.
Features of Mini Thermal Camera Module
- Autonomous core, cost-effective: The self-developed 12μm infrared detectors in the mini 256/384/640 series offer excellent value for cost and are the optimal choice for the same resolution.
- Outstanding performance, lightweight and convenient: Provide smooth and high-definition images, supporting up to 50Hz lossless image quality. Two precise temperature measurement modes cover a wide temperature range and ensure temperature stability in different ambient temperatures. The entire series has ultra-compact size of 21mm×21mm, with a module body weighing less than 8g, making integration easy.
- Rich functions, multiple options: Lensless solutions, manual/auto-focus non-thermalized lenses cover various scenarios.
5.0
Pseudo color mode:
White heat
Resolution:
384*288
Lens:
9MM
Size:
21*21*31MM
Weight:
20G
Application scenarios:
Industrial temperature measurement, fixed monitoring, security inspection detection, manual design
Output Signal:
Analog
Color:
Black
Lens can be choose:
6.8mm,9mm(inventory),13mm,25mm,35mm,50mm,other
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
View size guide
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Overview | |
| Series | CV384(384*288Resolution 9.1mm Focal length) |
| Resolution | 384*288 |
| Focal length | 9.1mm |
| Detector type | Vanadium oxide uncooled infrared focal plane detector |
| Frame rate | 50fps |
| Pixel spacing | 12μm |
| NETD | 40mk |
| Response band | 8～14μm |
| Optical parameters | |
| Lens specifications | 9.1mm F1.0 |
| FOV（H*V） | 9.1mm：29.2°×21.7° |
| Imaging/no temperature measurement | imaging |
| Other parameters | |
| Pseudo color | white hot |
| Supply voltage | 4.5-18V |
| Type of output | CVBS |
| Video format | P-system |
| Module volume (no lens) | 21*21 |
| Weight (no lens) | <8 g |
| Working temperature | -40℃～+80℃ |
| Storage temperature | -50℃～+85℃ |
|
Interface Definition |
5pin/1.25 terminals |
| 1: RX | |
| 2: TX | |
| 3: Analog | |
| 4：GND | |
| 5: 4.5-18V | |
