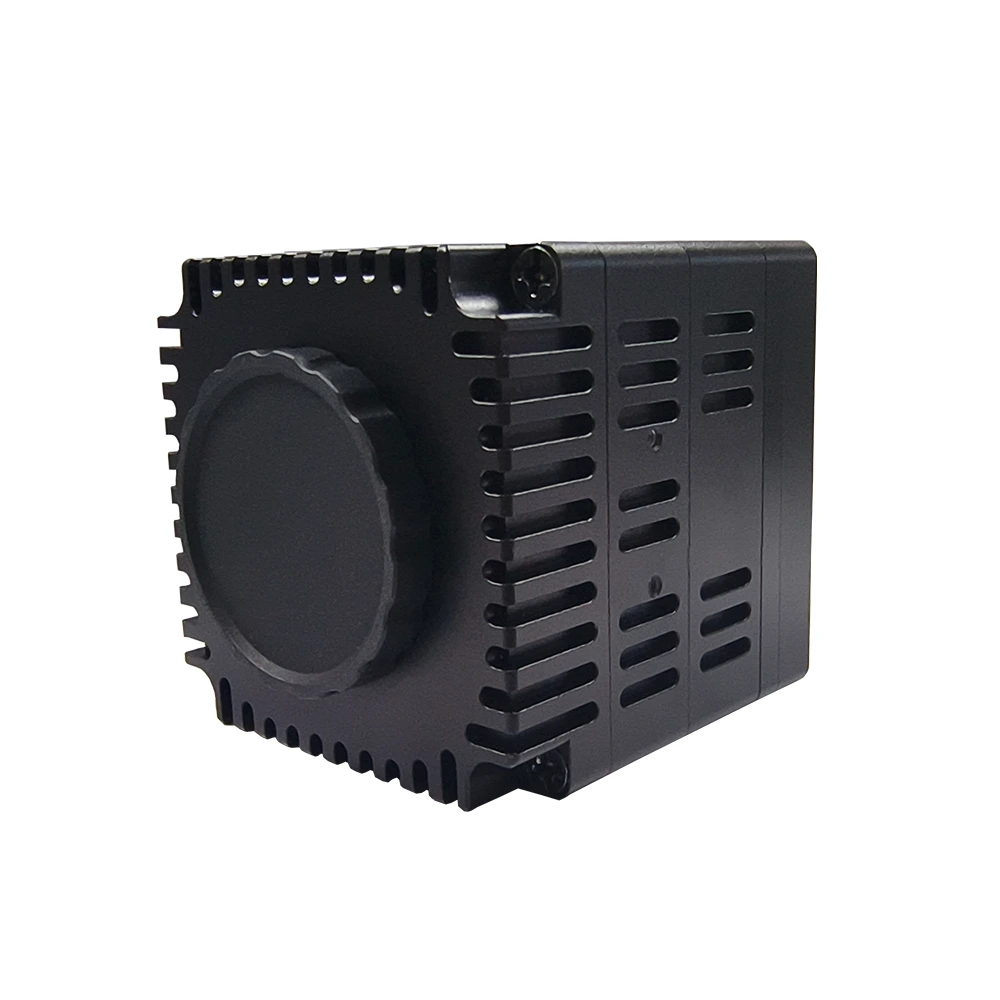

High Resolution 640*512 Shortwave Infrared Movement Shortwave Infrared Imaging Module
Prober_ The GE movement is a compact, general-purpose short-wave infrared imaging module. The motion image sensor uses a highly sensitive InGaAs focal plane Detector, built-in adaptive image processing algorithm, supporting high frame rate operation and ROI windowing, supporting USB3.0 or CameraLink data interface input It is equipped with a CVBS analog interface to support active temperature control. The product has the main characteristics of low noise, low power consumption, multi-function, and can be widely used in Visual enhancement, machine vision, photovoltaic detection, plastic sorting, laser detection, and other fields.
Key Features
Resolution: 640 × 512
● Provide SDK to support secondary development and product customization
● Low noise, low power consumption, multi-function
● Comprehensive input/output control options
● Stable operation
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Detector type | InGaAs focal plane detector |
| Spectral range | 0.93µm~1.7µm |
| Quantum efficiency | ≥70%（1.0µm ~1.6µm） |
| Optical fill factor | 100% |
| Pixel center spacing | 15µm |
| Resolution | 640×512 |
| Effective pixel rate | ≥ 99.8% |
| Point Type | Snapshot global shutter |
| Maximum full window output frame rate | 150fps / 300fps |
| Output Data Depth | 10bit / 12bit / 14bit |
| Minimum integration time | 10µs |
| Dynamic range | 50dB(Gain0)，62dB(Gain1)，72dB(Gain2), |
| Average pixel dark current | ≤ 80ke/s@20℃ |
| Image output | 10bit/14bit |
| Electricity | |
| Supply voltage | 7~24V, typical 12V |
| Typical power consumption | 3.5W (maximum ≤ 5W) |
| Communication interface | UART232 |
| Debug Video | PAL |
| Lens interface | C-Mount |
| Module physical characteristics (excluding lenses and flanges) | |
| Dimensions (w × l × h） | 53mm × 53mm × 54.3mm (subject to the drawing) |
| Weight | 245±10g |
| Environment | |
| Working temperature | -20℃~+55℃ |
| Storage temperature | -40℃~+70℃ |
| Lash | Backpeak sawtooth wave, 40g, 11ms, 3-axis, 6-direction, 3 times per direction |
Product display
主图6 (4)
主图5 (4)
主图4 (4)
主图3 (4)
主图2 (4)
主图1 (4)
