UV256: USB 256*192 Resolution 4mm Focal length Camera Module Core Intelligent households thermal imagers
Item Description:
- Number: UV256 4 USB
- Resolution:256*192
- Lens:4mm
- Interface:USB
- Putout: Digital signal
Usage scenarios
- Temperature detection, can be used for industrial temperature measurement, to prevent fires, and to promptly remind of existing safety hazards.
- Surveillance cameras allow for clear observation of nearby organisms with heat sources at night.
- Specific applications: Single person handheld thermal imager, Handheld thermometer, Automotive external thermal imaging,Infrared helmet, UAV,etc.
Features of Mini Thermal Camera Module
- Autonomous core, cost-effective: The self-developed 12μm infrared detectors in the mini 256/384/640 series offer excellent value for cost and are the optimal choice for the same resolution.
- Outstanding performance, lightweight and convenient: Provide smooth and high-definition images, supporting up to 50Hz lossless image quality. Two precise temperature measurement modes cover a wide temperature range and ensure temperature stability in different ambient temperatures. The entire series has ultra-compact size of 21mm×21mm, with a module body weighing less than 8g, making integration easy.
- Rich functions, multiple options: Lensless solutions, manual/auto-focus non-thermalized lenses cover various scenarios.
5.0
Pseudo color mode:
White heat
Focusing:
Fixed focus
Resolution:
256*192
Lens:
4MM
Size:
21*21*31MM
Weight:
40G
Output Signal:
Digital
Color:
Black
Lens can be choose:
4mm(inventory),6.8mm,9mm(inventory),13mm,25mm,35mm,50mm,other
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
View size guide
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Overview | |
| MINI 256*192 Resolution 4mm Focal length (CVBS) | |
| Resolution | 256*192 |
| Focal length | 4MM |
| Detector type | Vanadium oxide uncooled infrared focal plane detector |
| Frame rate | 25fps |
| Pixel spacing | 12μm |
| NETD | 40mk |
| Response band | 8～14μm |
| Optical parameters | |
| Lens specifications | 4.0mm F1.0 |
| FOV（H*V） | 4mm：45°* 33° |
| Application functions | |
| Imaging/no temperature measurement | imaging |
| Other parameters | |
| Pseudo color | white-hot |
| Supply voltage | 4.5-18V |
| Type of output | USB |
| Module volume (excluding lenses) | 21*21*31mm |
| Weight (excluding lens) | <8 g |
| Working temperature | -40℃ - +80℃ |
| Storage temperature | -45℃ - +85℃ |

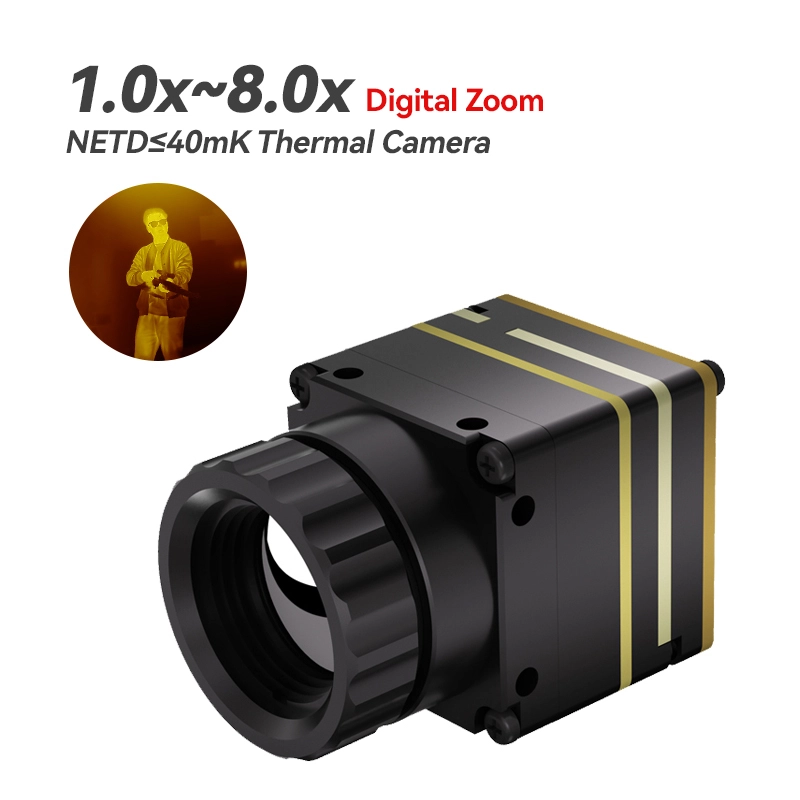

Product display
详情2 (5)
详情1 (2)
Hfcb03dd4d1994fdda82db7dd349ec137l
He45c0a9bd8494f0a8e26742a41b5882bw
Ha621d180c3f245da9b1539faf2cdc5a1w
Ha8ed0242cdfb45a6a9da102a1eec4a416
