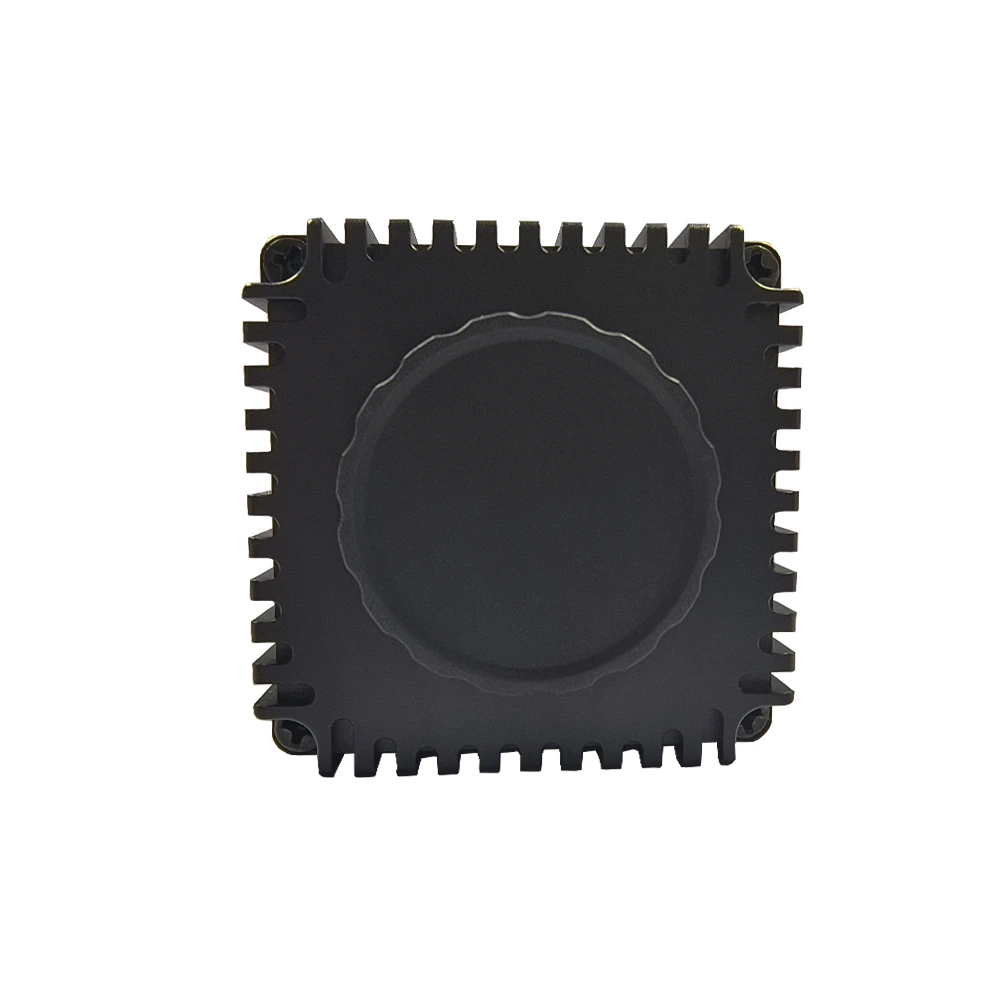

New Resolution 384*288/NO LENS Uncooled Thermal Imaging Module Mobile handheld infrared receiver modules
384*288Resolution/NO LENS S3 module uses the new 12μm VOx detector developed by our company, combines with advanced image processing technology, and provides abundant SDK second-development interfaces to customers. The module focuses on characteristics such as stability, sensitivity and high expansibility.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Model | S4 |
| Resolution | 384*288 |
| Frame rate | 50Hz |
| Pixel pitch | 12μm |
| Response spectra | 8~14μm |
| NETD | ≤50mK@25℃, F#1.0(≤40mK is applicable) |
| Image Adjustment | |
| Brightness adjustment | Adjustable in Grade 0~ Grade 20 |
| Contrast adjustment | Adjustable in Grade 0~ Grade 20 |
| Polarity | White hot/Black hot |
| Color palette | Optional (4 Species) |
| Electric zoom | 1.0~4.0× Continuing Zooming (step length 0.1 ) |
| Video mirror | Right left/Up down/Upper Left Diagonal |
| Reticle | Reveal/Hidden/Shift |
| Image processing | Scene-based Non-uniform correction |
| Digital Filter and Imaging Denoising | |
| Digital Detail Enhancement | |
| Power supply | |
| Supply voltage | 5~12VDC |
| Typical | <1.0W |
| consumption@25 | |
| ℃(Including | |
| expansion board) | |
| Interface | |
| Analog video | 1 channel (PAL(3) or NTSC) |
| Digital video | LVDS/LVCMOS/BT.656 |
| customization | |
| Serial communication | UART |
| interface | |
| Button | 4 buttons |
| Physical property | |
| Weight | 28±3g (Excluding lens and expansion board) |
| Environmental adaptation | |
| Operating temperature | -40℃~+80℃ |
| Storage temperature | -50℃~+85℃ |
| Humidity | 5%-95%, No condensation |
| Vibration | 6.06g, random vibration, all axial direction |
| Shock | 80g @4ms, final peak sawtooth wave, three axes and six directions |
Product display
主图6 (3)
主图5 (3)
主图4 (3)
主图3 (3)
主图2 (3)
主图1 (3)
Product package
包装2 (2)
包装
